Snacks Packing Solutions

Automatic Weighing/Packaging Solution

Technical Data

ItemDescription
Film WidthMax. 4200mm-520 mm
Pack Length10-250mm, or more
Pack Width60-200mm, or more
Weighing Range25g~500g
Accuracy±0.5g
Max. Speed70WPM
Date PrintingIncluded
Length SettingPhoto eye Sensor/Length input
Operation ModePneumatic and Servo

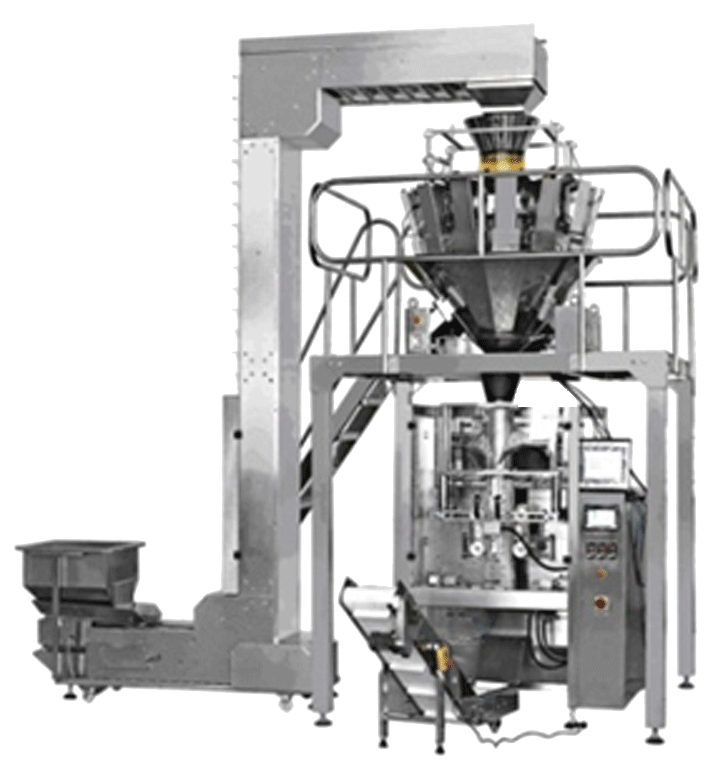

Vertical Form-Fill-Seal (VFFS) Machine with Cup Filler

Suitable for packaging of Namkeen, puffed food, shrimp, peanuts, melon seeds, rice, seeds, MSG, popcorn and other granular, bar sheet, solid materials in bigger volume.

Main feature:

  • PLC control system with HMI; touch screen is simple and direct-viewing in operation.
  • Precise positioning with servo film transporting system.
  • Minimize the loss with complete automatic warn protection function.
  • Supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag making.

Technical Data

ItemDescription
Max. Film Width 420mm
Pack Length 80-200mm
Pack Width 60-200mm
Packing Range 500g-1000g
Speed 20-70 Bag/min
Date Printing Auto date printing
Packing MaterialOPP/CPP.OPP/CE.MST/PE/PET/PE
Bag TypePillow or Standing as Customer required
Film Thickness0.04-0.07mm
Power220V, 50Hz,

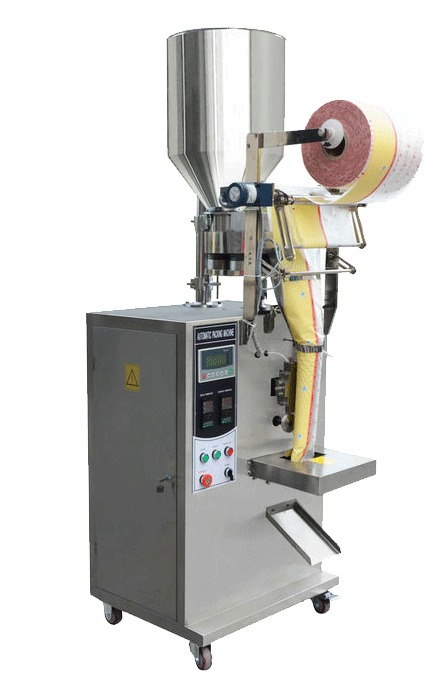

Small Vertical Packing Machine with Cup Filler (For Chanachur, Nuts)

Suitable for all kinds of puffed food, shrimp, french fries, candy, peanuts, popcorn, rice, coffee, sugar, chicken, MSG salt and other granular, strip, desiccant, flake solid material packaging.

Main feature:

  • Machine body using 201ss, material touching parts using 304ss (full machine can be 304ss)
  • Imported Mitsubishi, Japan PLC control
  • Stepper Motor control,this system has the advantage of precise,needless to adjust the other parts.
  • Suitable for the complex film and tin foil and other packing material.
  • Fine packaging performance,low noise,clear sealing texture and strong sealing performance.
  • Saw tooth Cutting.
  • Chain or Single Bag Function

Technical Data

ItemDescription
Film Width180-320mm
Pack Length40-220mm
Pack Width30-150mm
Packing Range30-500ml
Speed20-60 bags/min
Date Printing Possible with Additional Charge
Packing MaterialOPP/CPP.OPP/CE.MST/PE/PET/PE
Film Thickness0.04-0.07mm
Power220V, 50Hz, 1.5kw

Besides, we have Rotary Robotic Packing Machine for Pre-made Bags
