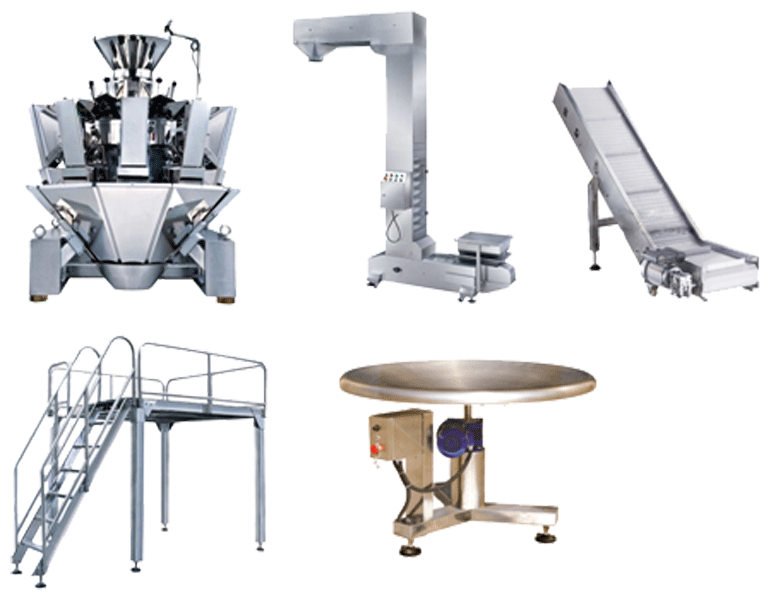

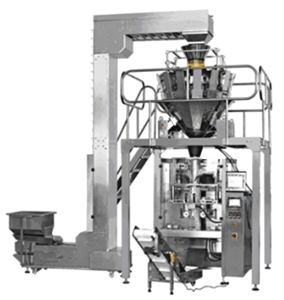

This complete automatic packaging system configured with,
- Form-fill-seal machine for pillow bags,
- Combination Multi-head weigher with 1.3-liter capacity bucket,
- Support platform,
- Weigher feeding conveyor, and
- Outtake conveyor with belt width 200mm
- Rotary collecting table (Optional)

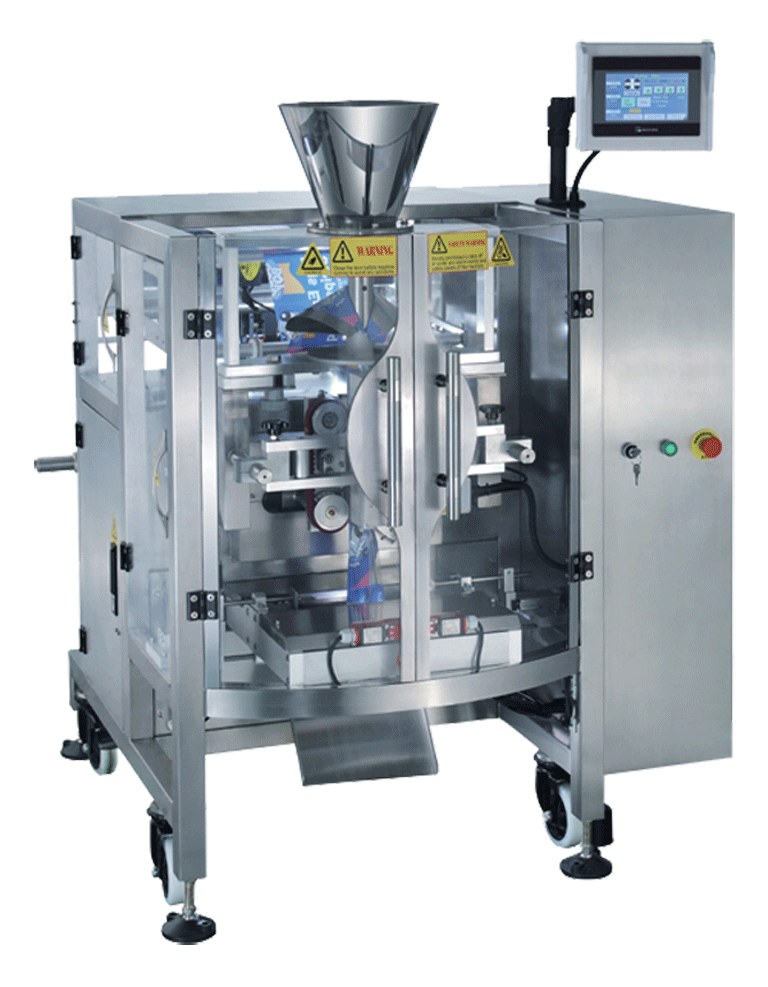

Vertical Form-Fill-Seal Machine
Features:
- Stainless steel 304# machine frame

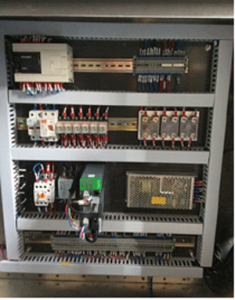

- PLC with Touch-control operation system
- 50 package recipe storage
- Hotstamp date printer
- Forming tubes designed for changeover flexibility

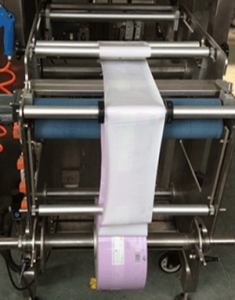

- Servo-driven for precise intermittent film draw-off

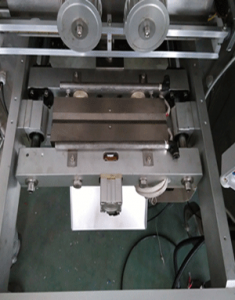

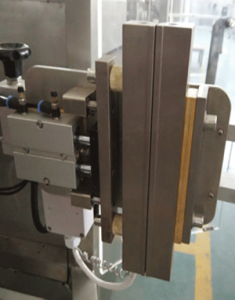

- Pneumatic-driven horizontal sealing units
- Pneumatic-driven vertical seal bar units
Technical Data
| Item | Data |
|---|---|
| Model | YS-420 |
| Max. Film Width | 400mm |
| Bag Length | 10-250mm |
| Bag Width | 60-200mm |
| Filling Range | 10-750g |
| Reel Diameter | 100-400mm |
| Output | Up-to 100 cycles/min |
| Sealing System | Intermittent |
| Operation Mode | Pneumatic and Servo |
| Electrical Conjumption | 220V, 50Hz, 5.5KW |

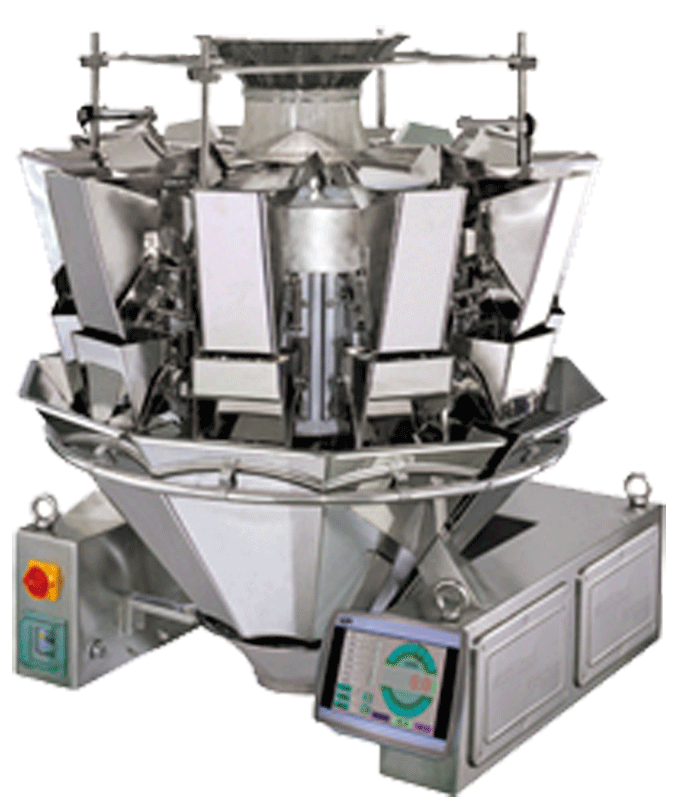

Multihead Weigher (10 or 14 Weighing Head)
Features:
- The most efficient and accurate weight calculation by computer when compared to manual process.
- Stagger dump avoid materials pile up.

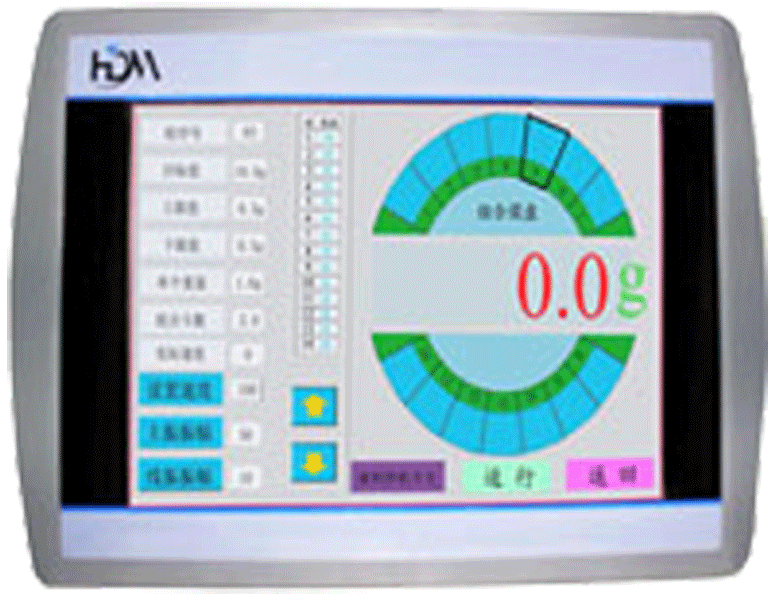

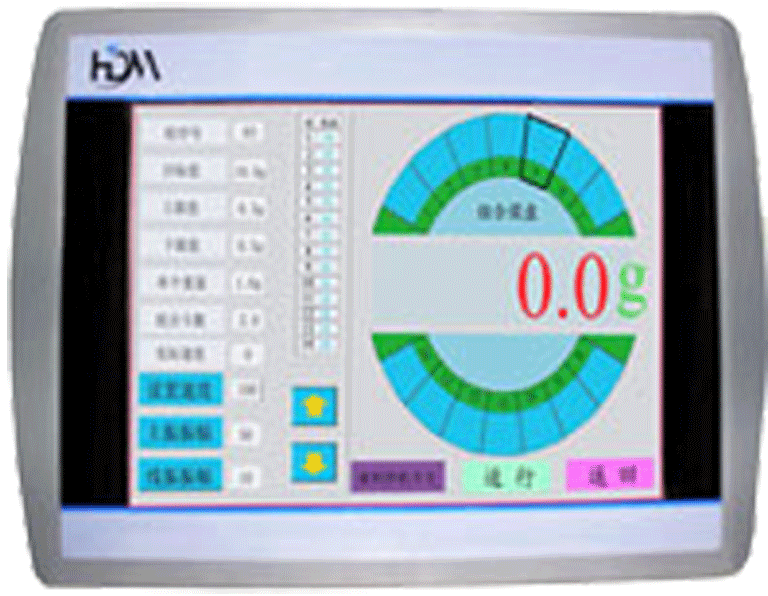

- User friendly touch screen equipped with multiple language.
- Adjustable backlight control for vision protection
- Compatible with single packaging machine for automatic weighing.
- Instant hopper vibration index for better control.
- 99 preset programs for multiple tasks.
Technical Data
| Item | 1.3L Standard 10/14-Head Weigher | 1.3L Standard 10/14-Head Weigher |
|---|---|---|
| Model | 10-2B-01X or 14-2B-01X | 10-2B-03X or 14-2B-03X |
| Weighing Range | 25g~500g | 25g~500g |
| Accuracy | ±0.5g | ±0.5g |
| Max. Speed | 70WPM/90WPM | 70WPM/90WPM |
| Power Supply | 220V, 50Hz, 1.5KW | 220V, 50Hz, 1.5KW |
| Hopper Volume | 1.3L | 2.5L (Double Doors) |
| Monitor | 10.4 inches color touch screen | 10.4 inches color touch screen |

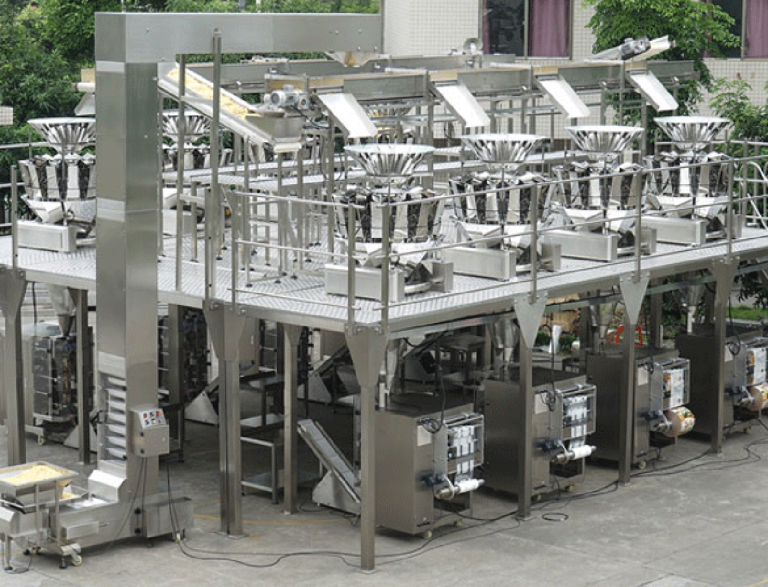

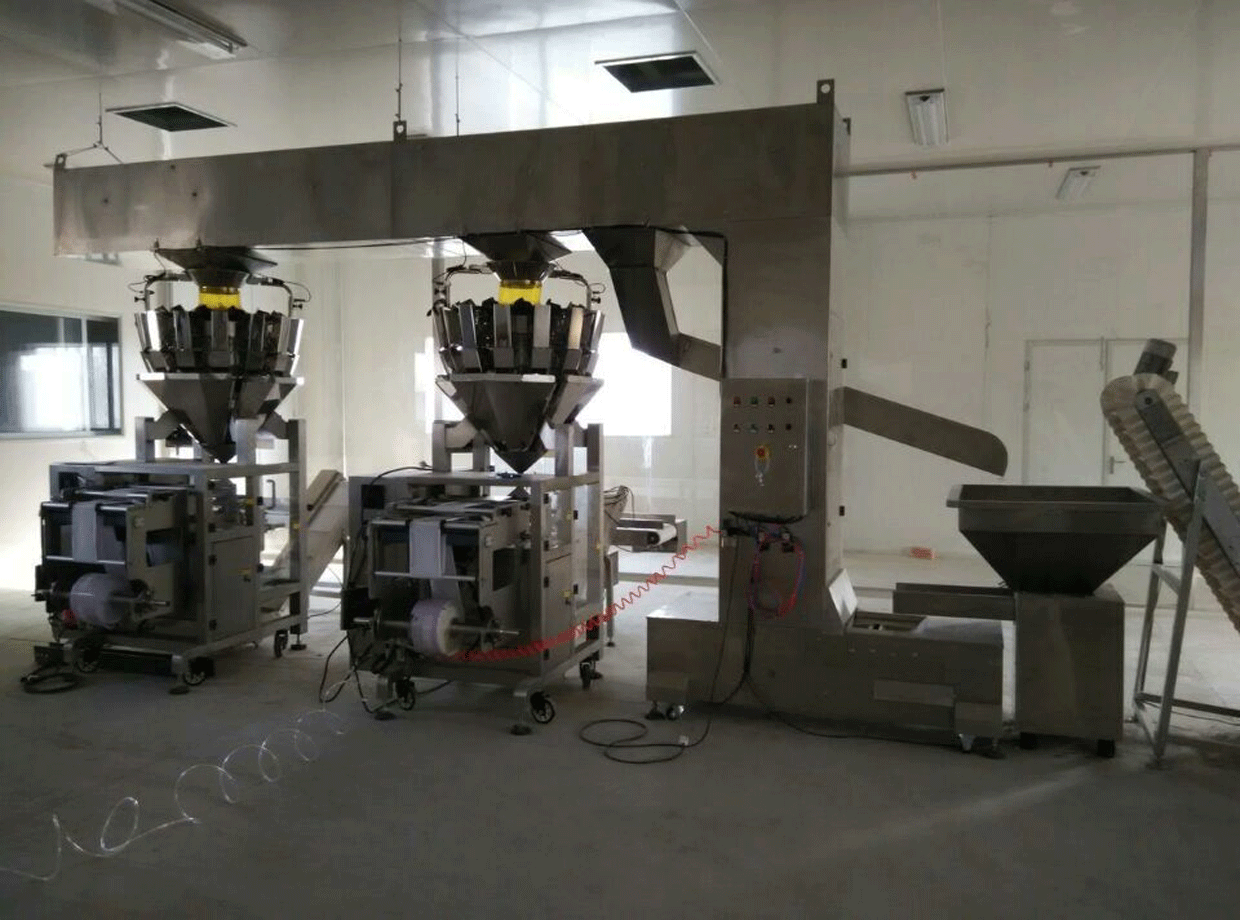

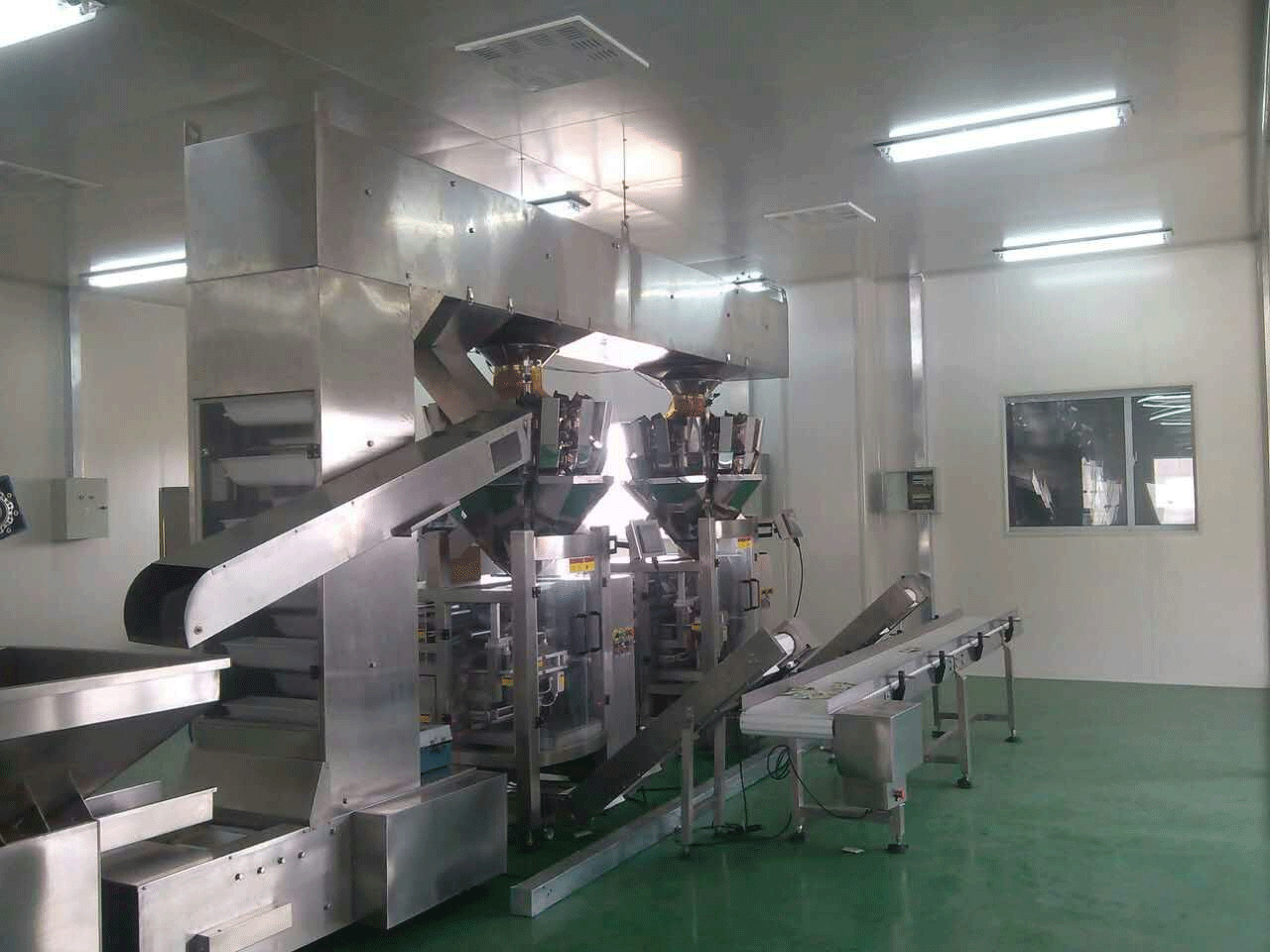

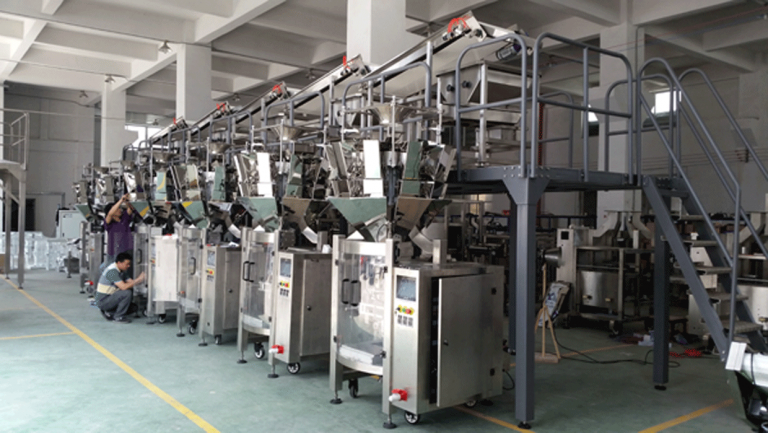

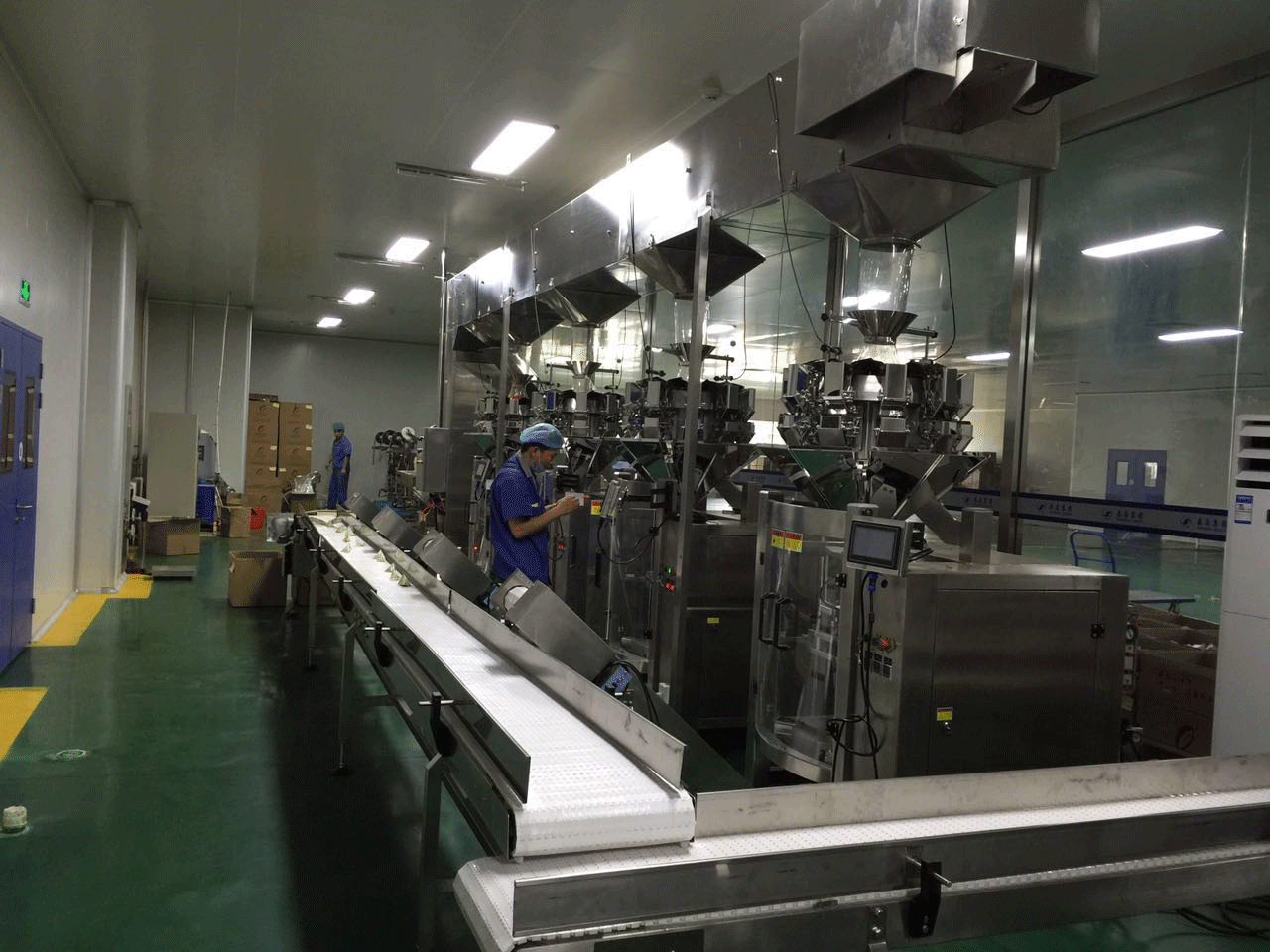

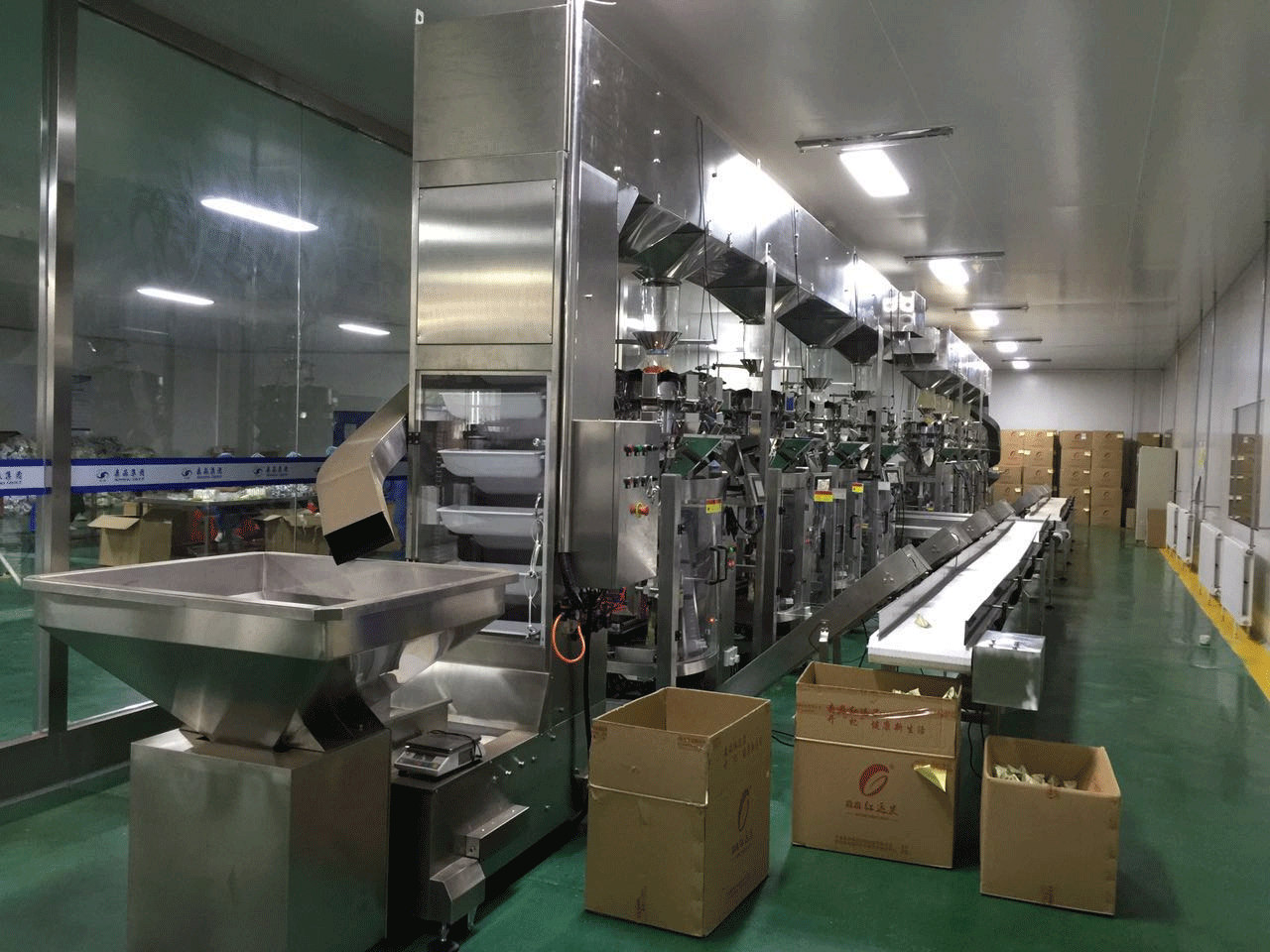

Different Elevator Arrangements
